How to Mount a Sign Panel to a Wall

This guide covers fixing a flat sign plate directly to a wall using screws and (where needed) wall plugs. The workflow: position and level, mark, drill/plug, present the panel, and screw.

Before you start -

Check the substrate (brick, block, stone, timber, plasterboard) and choose suitable fixings.

Protect finished faces during handling (soft cloth or film).

Wear appropriate PPE.

Tools & fixings you may need -

Tape measure, pencil, spirit level

Drill/driver and suitable bits (masonry/wood/metal as required)

Appropriate wall plugs (if fixing into masonry)

Screws (head style/finish to suit specification)

Screwdriver/driver bit, countersink (optional)

Cleaning wipes/cloth

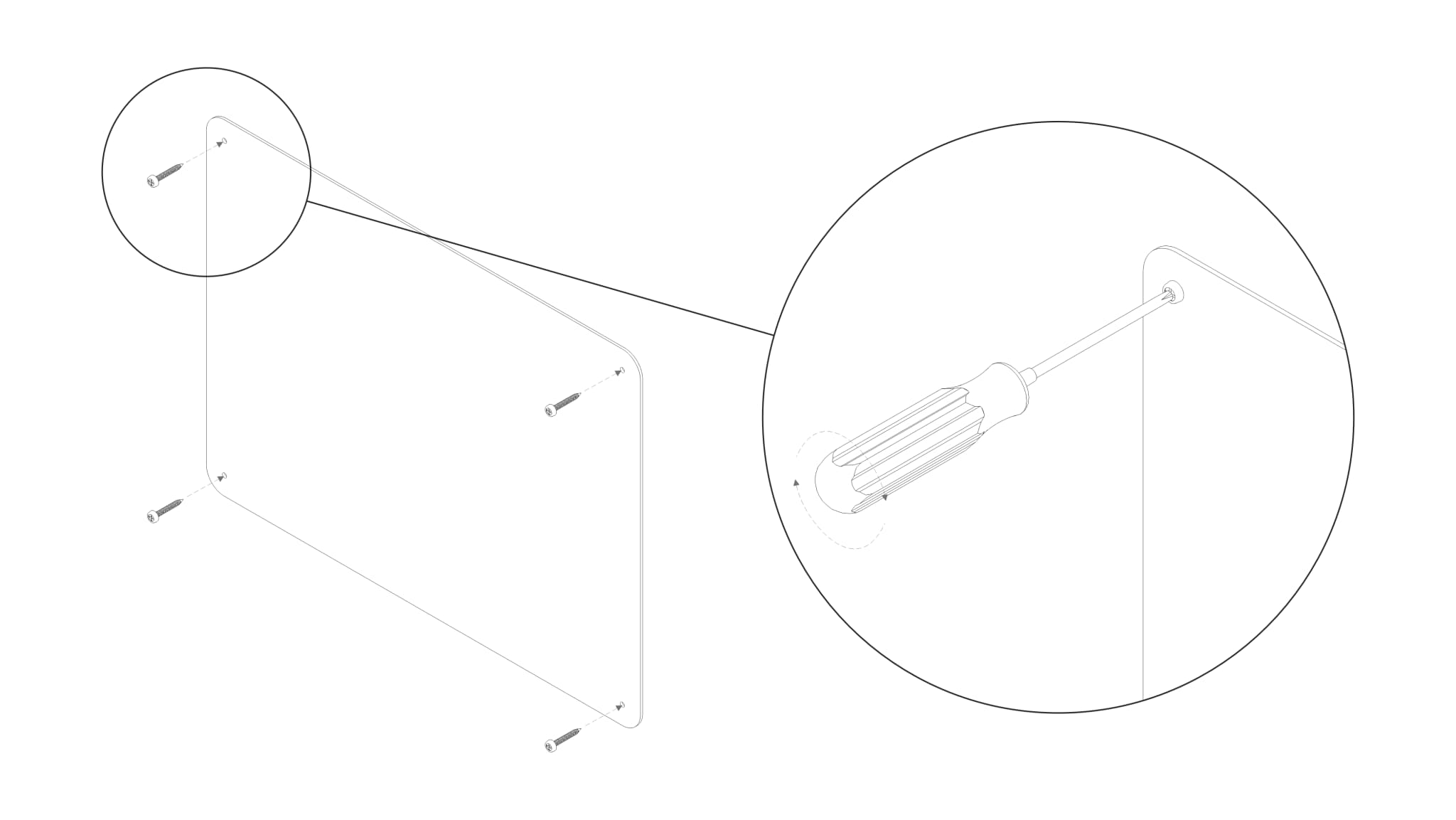

Step-by-step installation -

1. Position & level

Offer the panel to the wall at final height. Use a spirit level and mark the fixing holes through the panel. (Tip: low-tack tape behind the marks keeps the wall clean.)

2. Drill & (if required) plug

Remove the panel. Drill the marks to the correct diameter/depth and insert wall plugs appropriate to the substrate and screw size.

2. Present the panel

Place the panel back over the prepared holes, aligning each hole with its plug/pilot.

3. Fix off

Drive the screws until snug. Avoid over-tightening to prevent panel bowing or surface damage. Where aesthetics matter, match screw head finish/caps to the panel.

4. Final checks

Confirm level and alignment, remove protection, and clean down the face. The sign is now complete.

Pro tips -

Use a drilling template when repeating the same panel size to speed up marking (available on request).

Pilot-drill brittle façades (e.g., tiles) with a small bit first to avoid chips.

For external installs, consider stainless screws and caps to minimise future staining. We offer a range of Colour Coded Snap-Caps to protect flat-bottom screw heads and complement your panel finish.

Where expansion is a concern (sun-exposed aluminium panels), avoid overtightening and allow micro-movement.

Quality checklist -

All fixings seated uniformly and heads aligned (if visible).

Panel sits flat with no rocking or bowing.

Level and vertical.

Care & maintenance -

Wipe with a non-abrasive cloth and mild detergent. Avoid solvents. Inspect annually for loose fixings, corrosion, or substrate movement.
