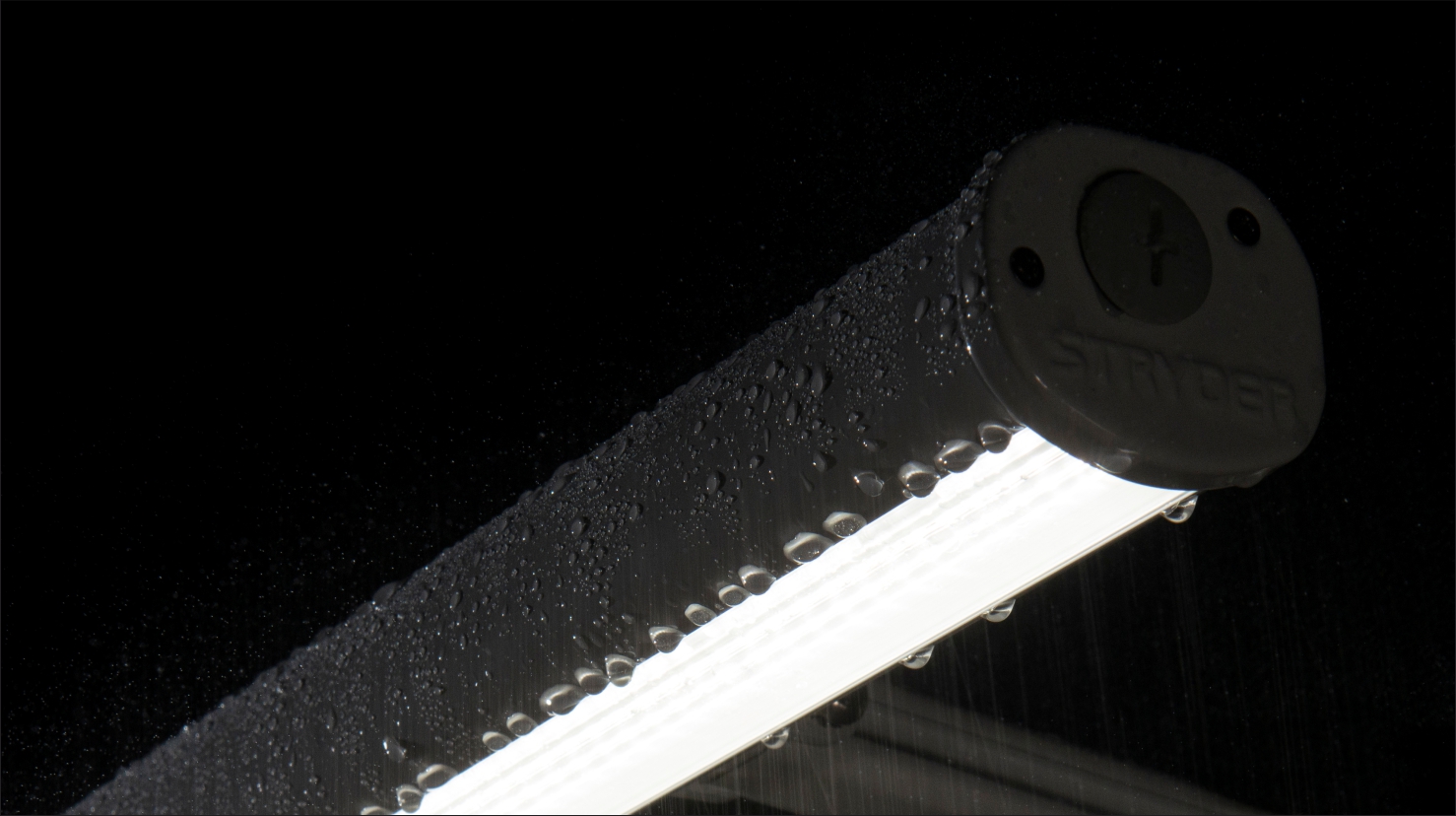

Fully protected against dust and jets of water. On top of the IP66 rating we provide a 3 year warranty for our troughlights
Size an issue? Join multiple Troughlights together without any visible connections or cables

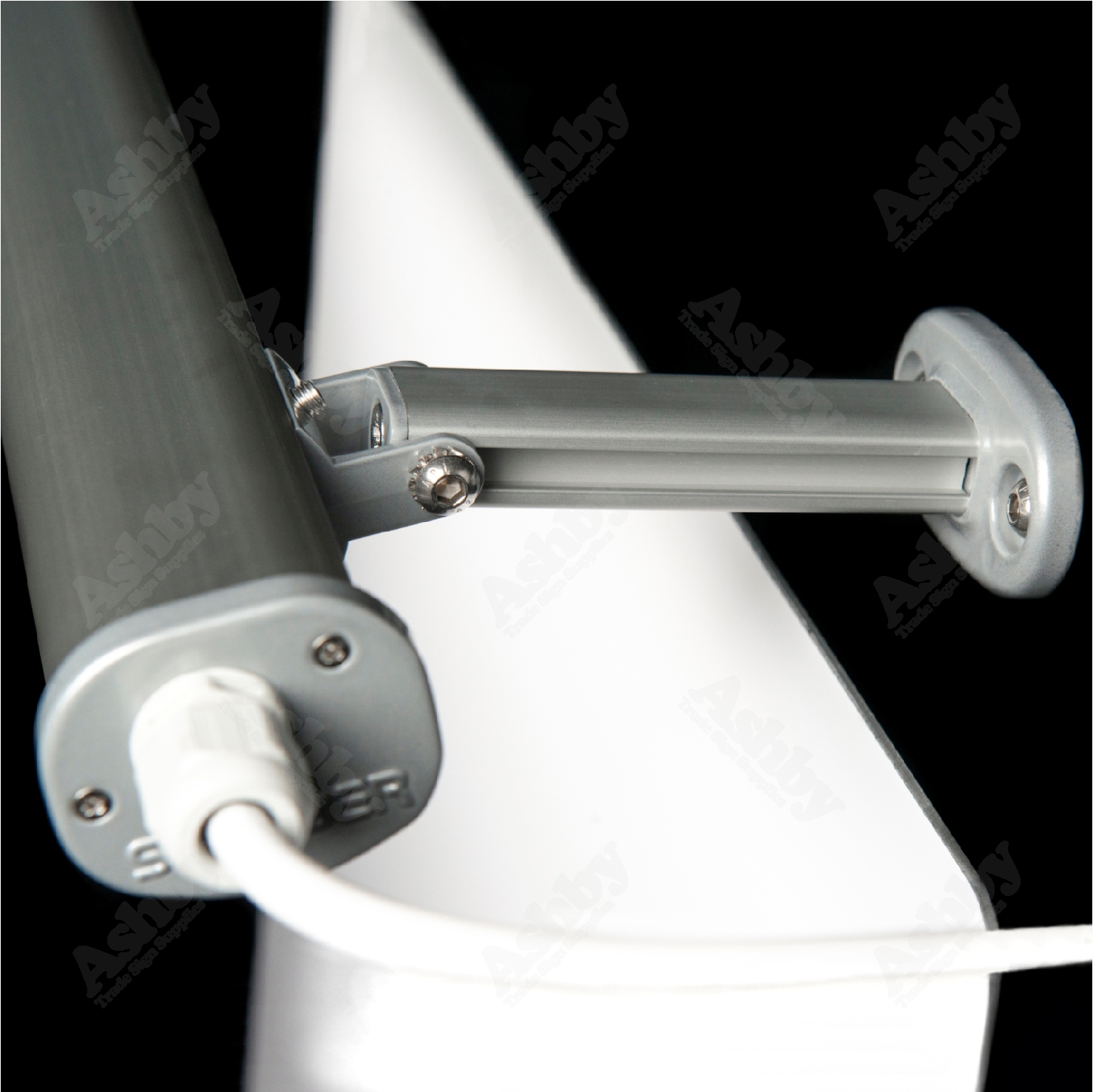

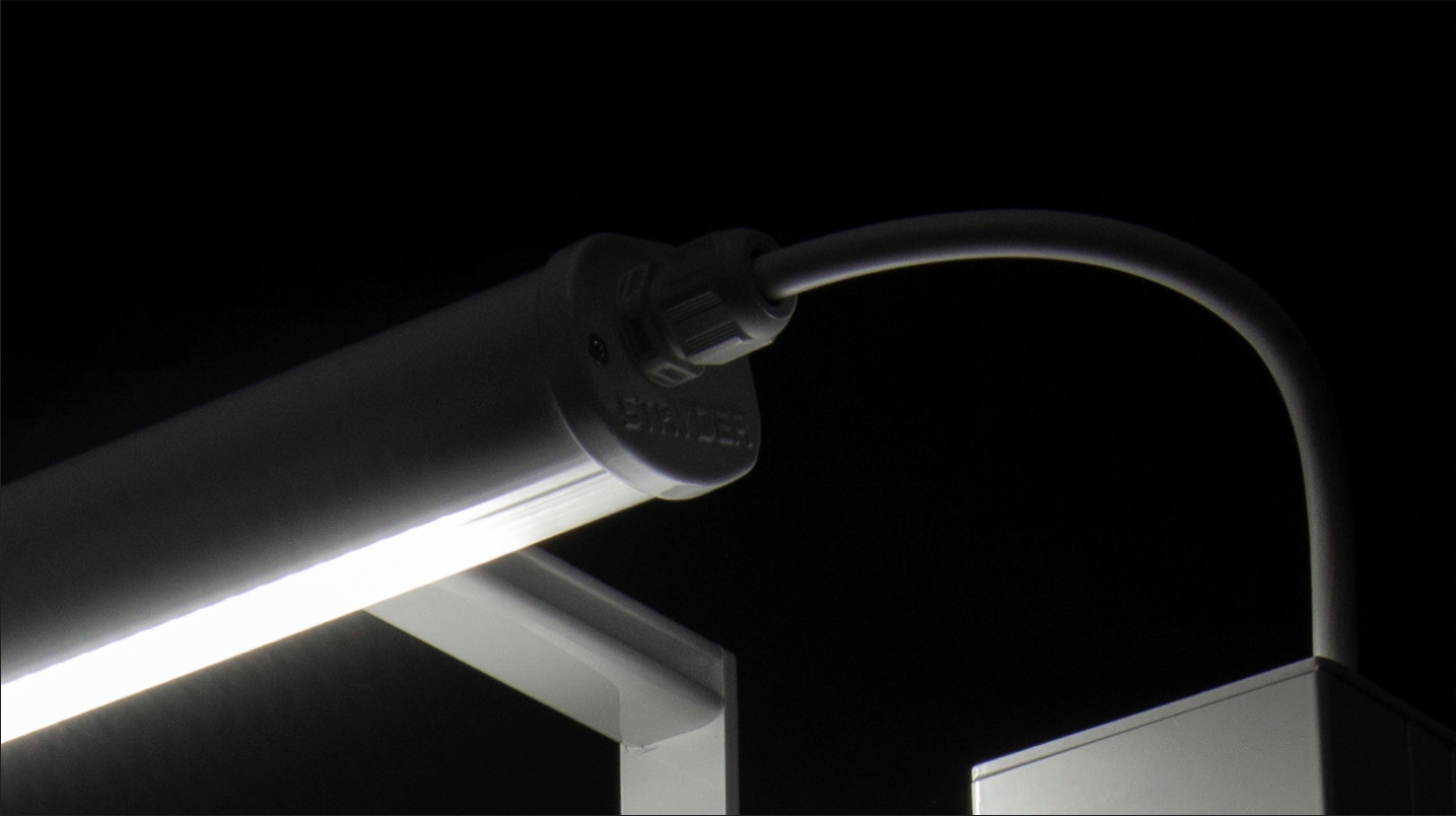

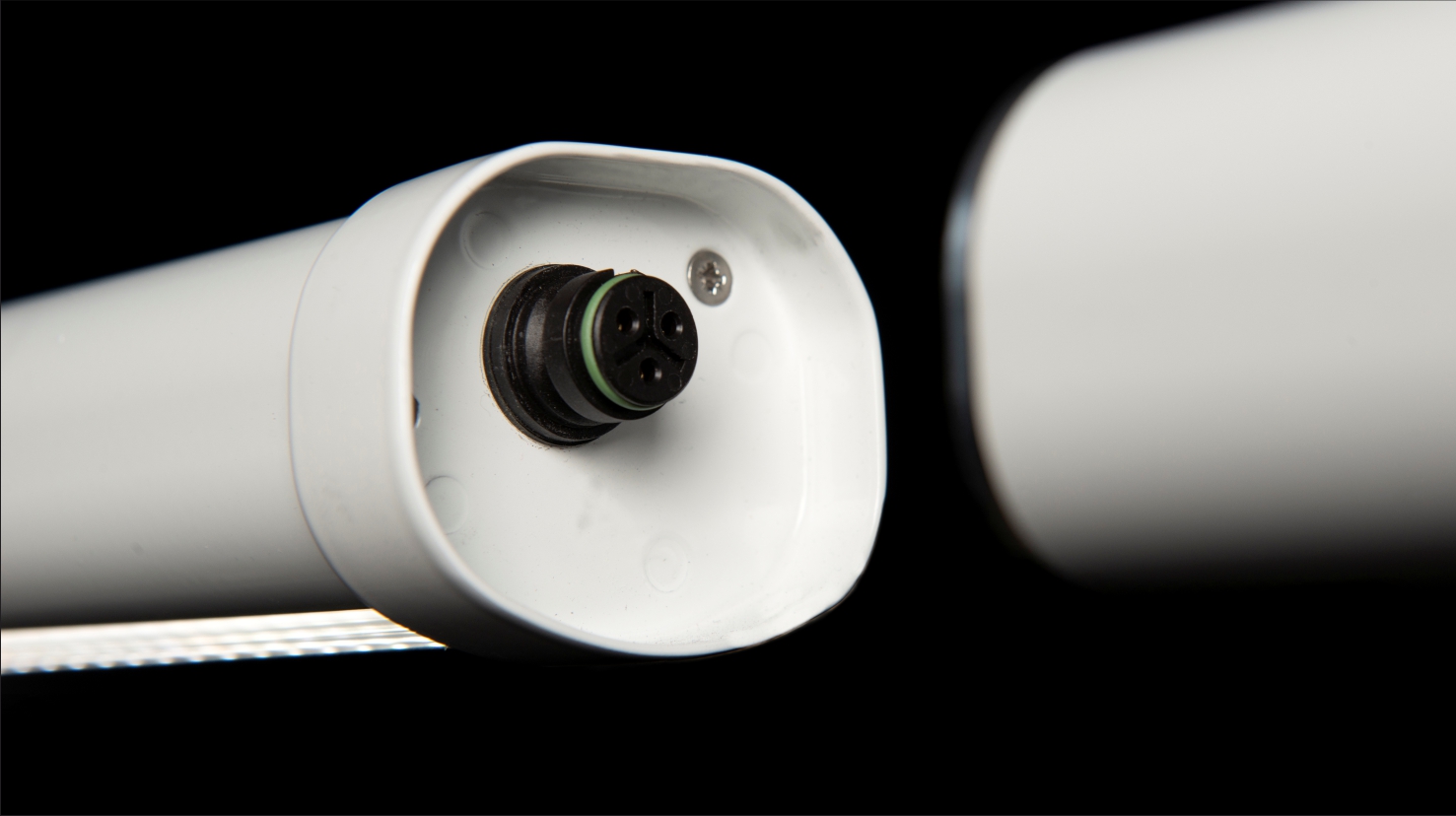

Pick your cable exit point from either the left or the right end cap, the other end will be isolated by a blanking plug.
Cables not routed via the caps can be accommodated for but will void the warranty

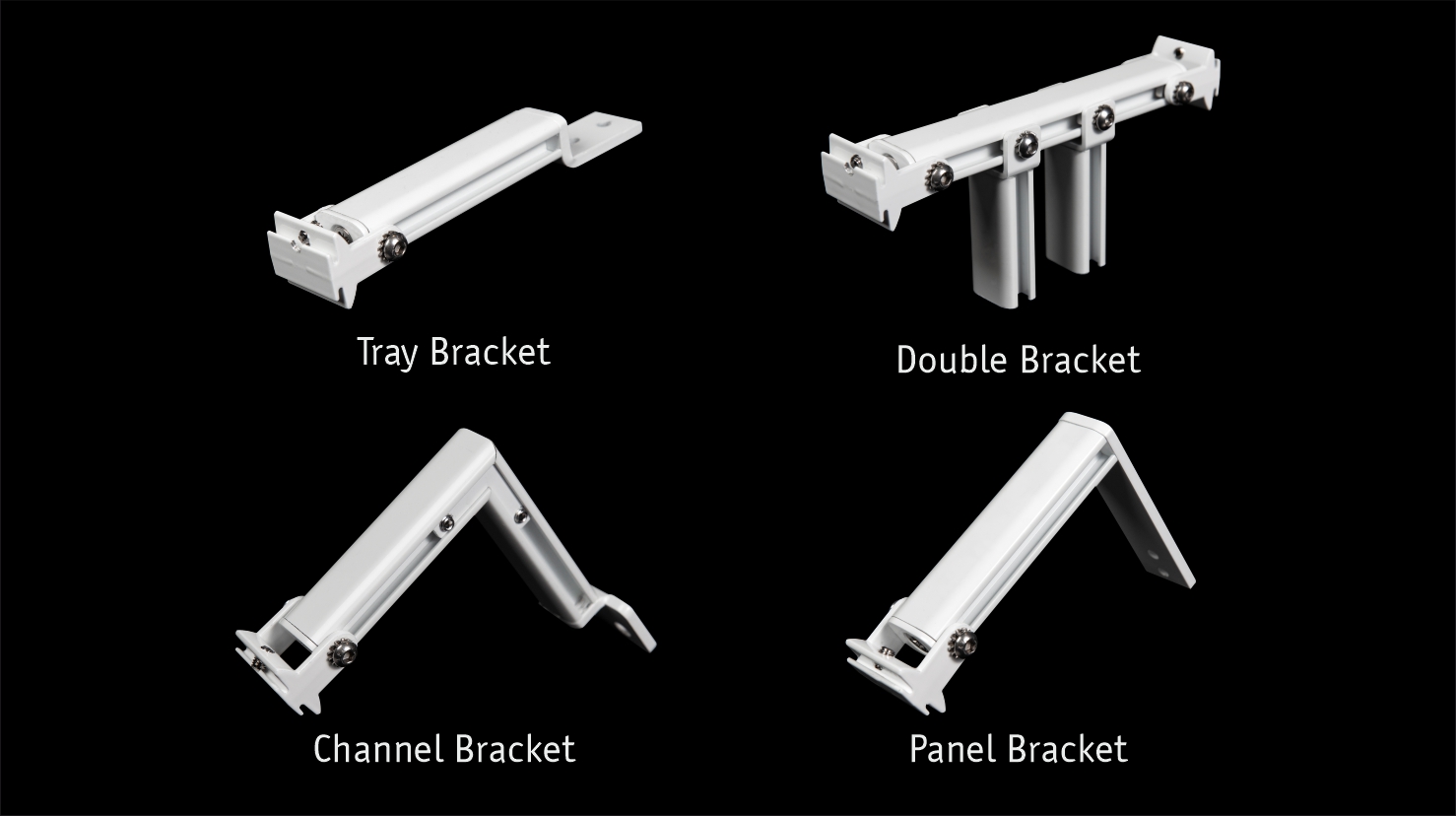

Stryder has various brackets available for post mounting
Tray Bracket: For post mounted tray systems (single sided)
Double Sided Bracket: For post mounted tray systems (double sided)
Channel Bracket: For post mounted panel systems (with channel)

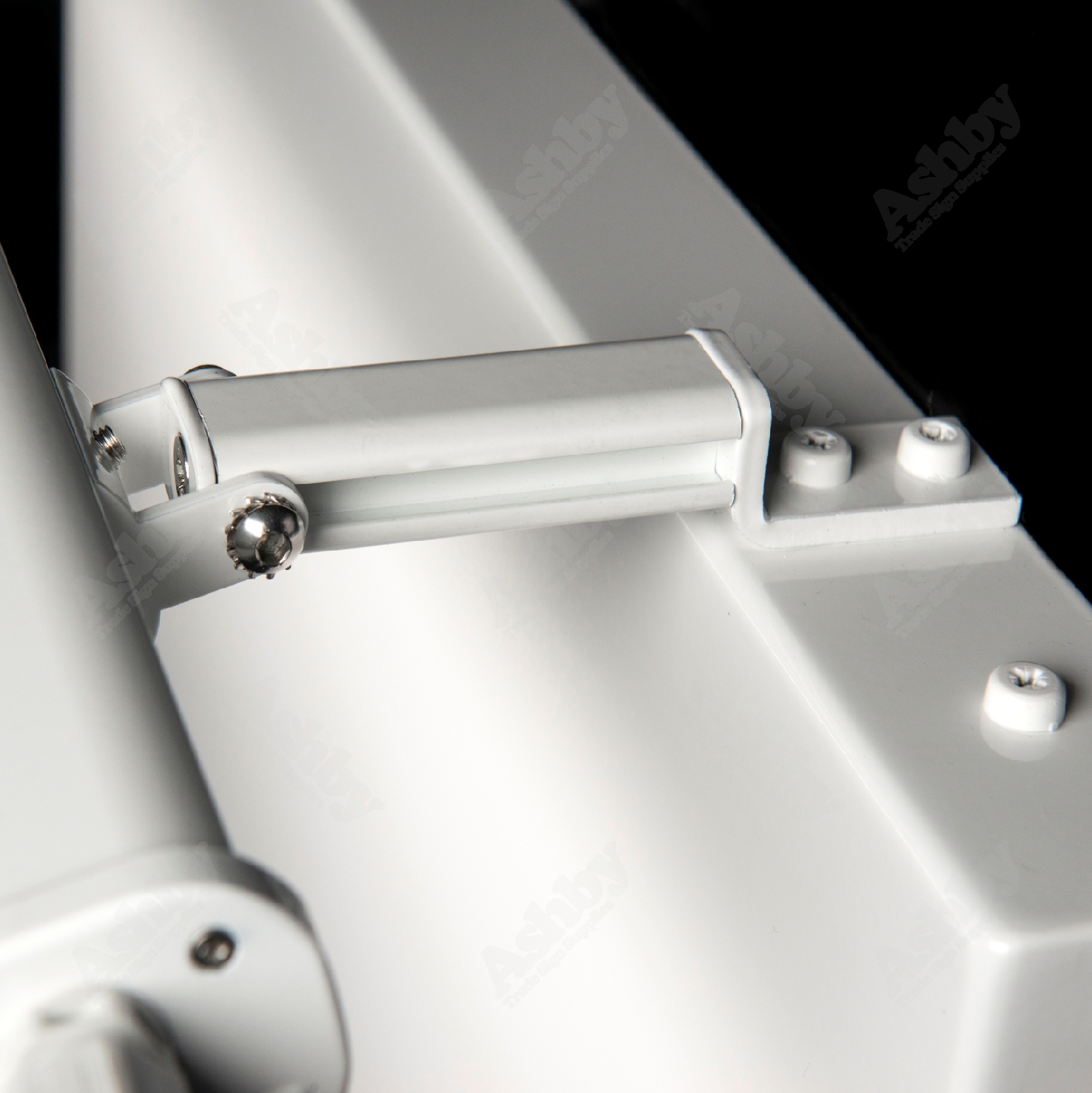

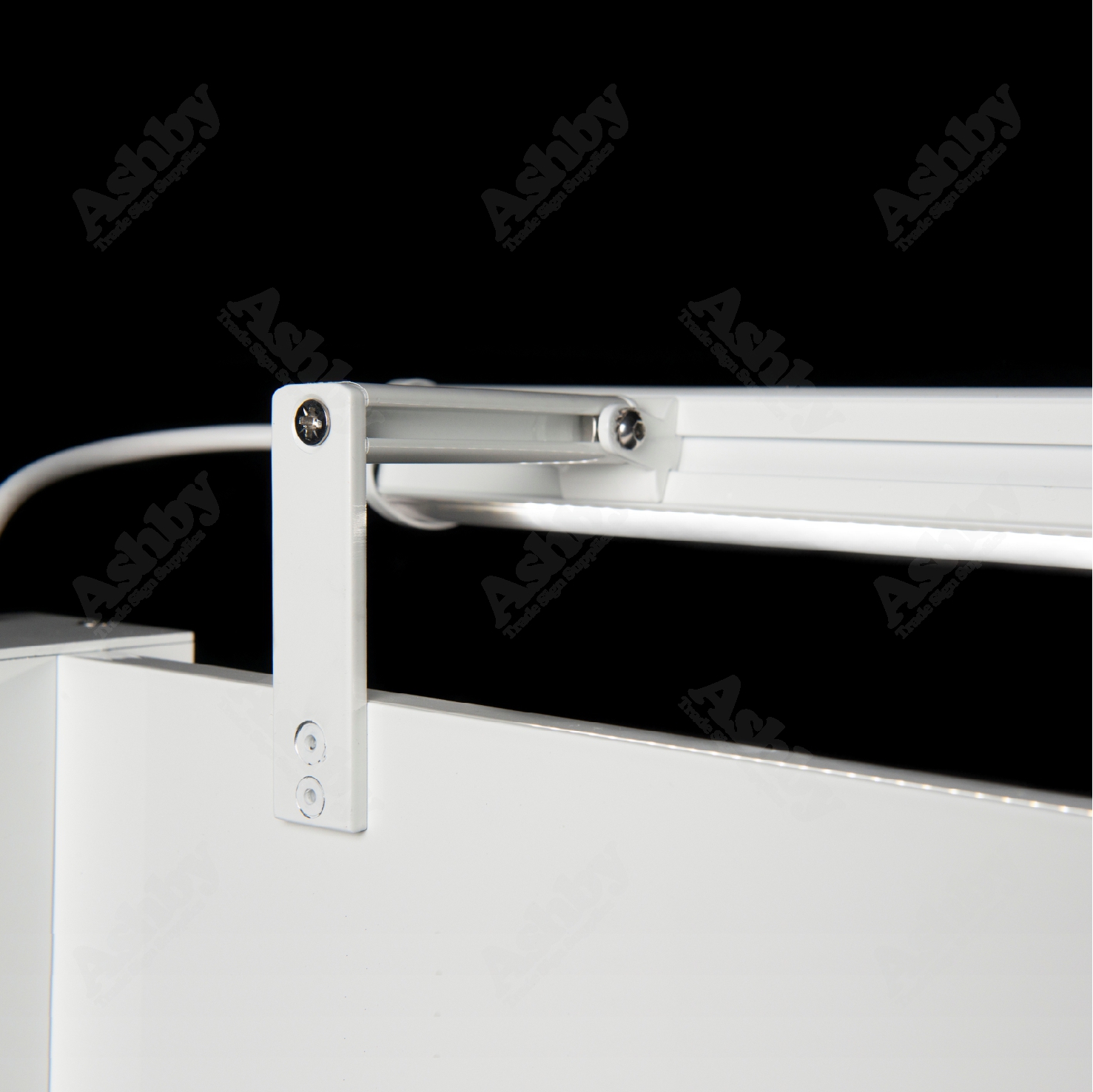

Panel Bracket: For post mounted panel or plank systems (AS760 or Modular)
If you don't see what is in your minds' eye, we have nearly 30 years' experience with bespoke signage manufacture. Let's work together!

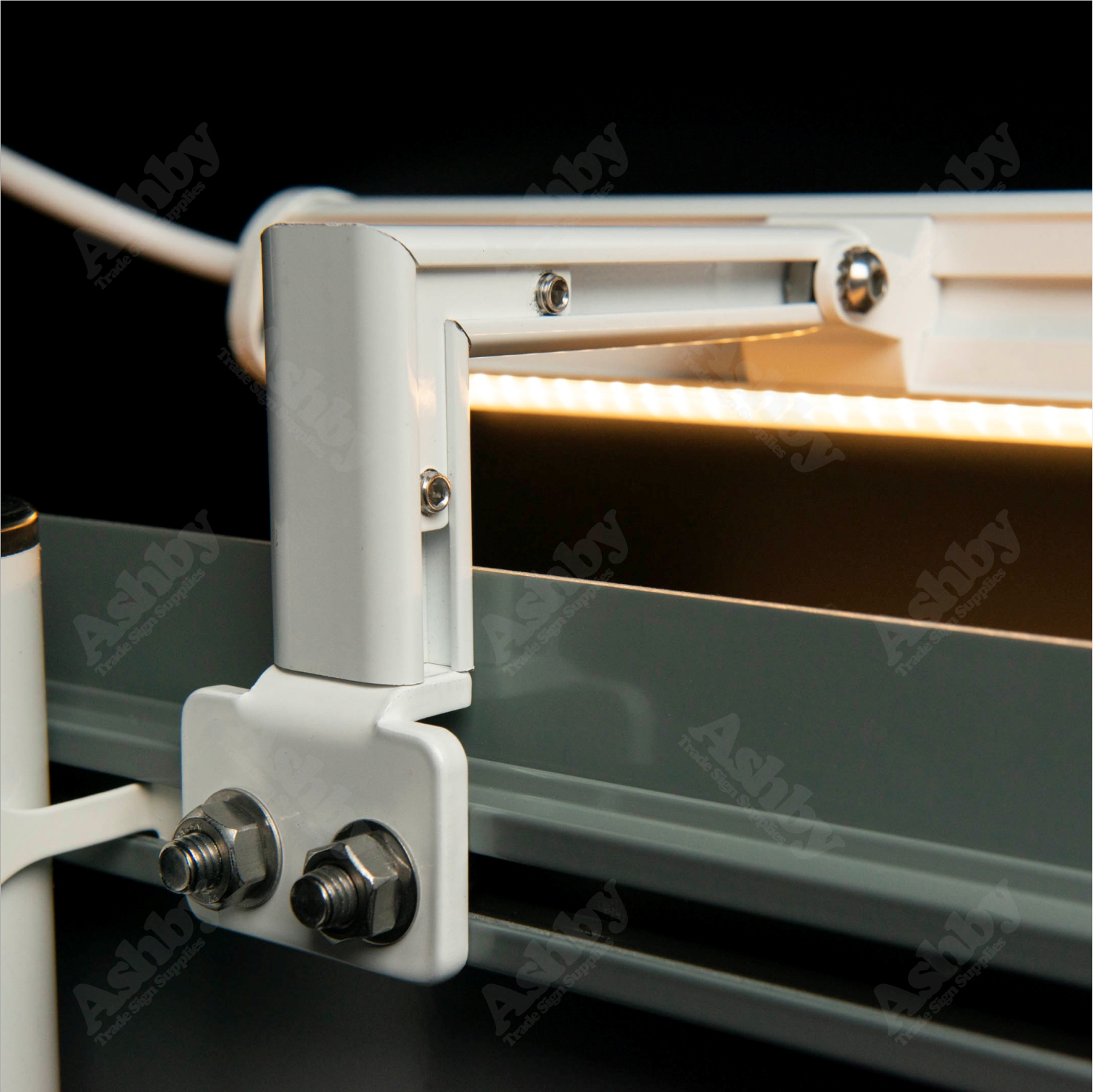

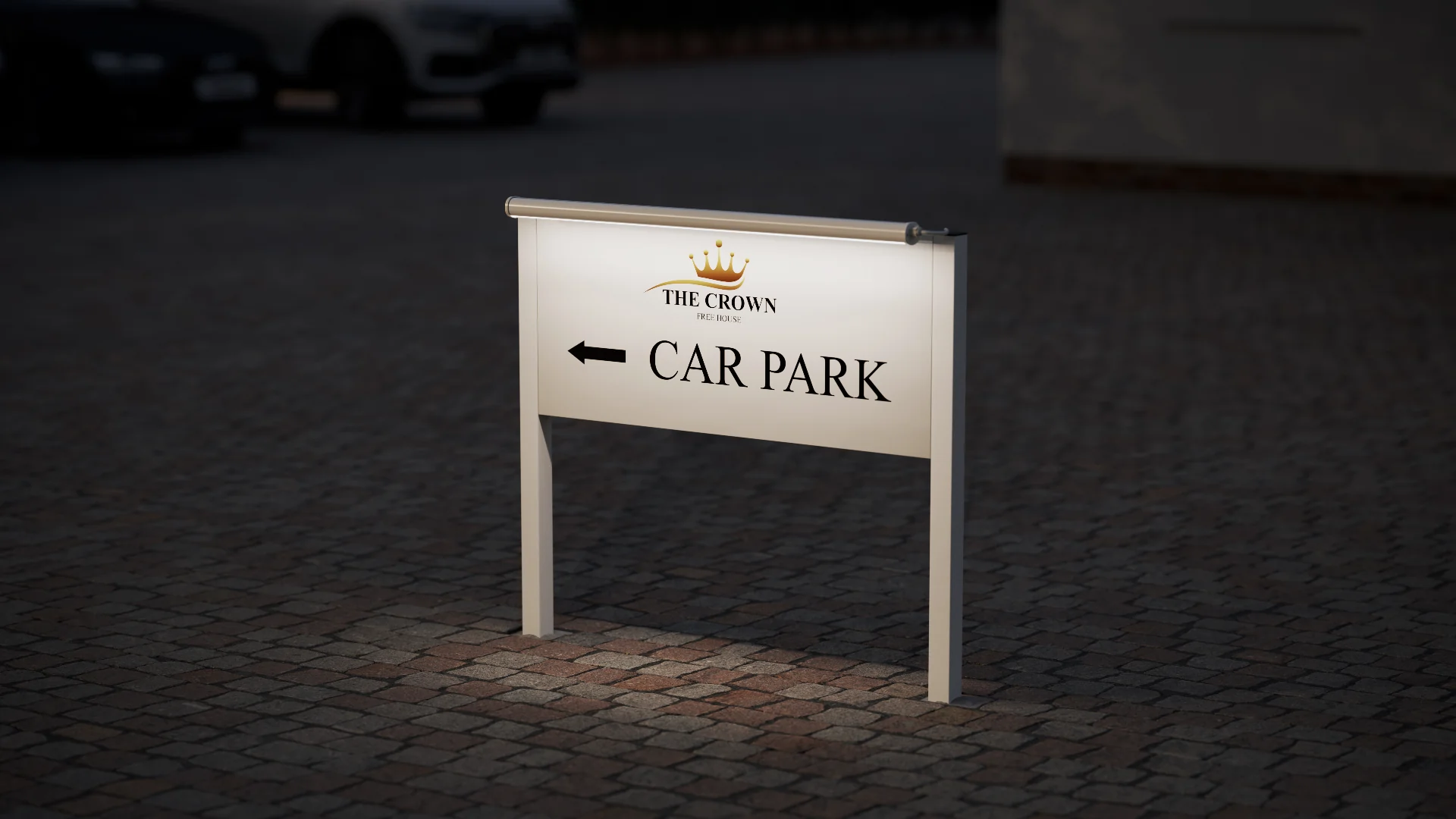

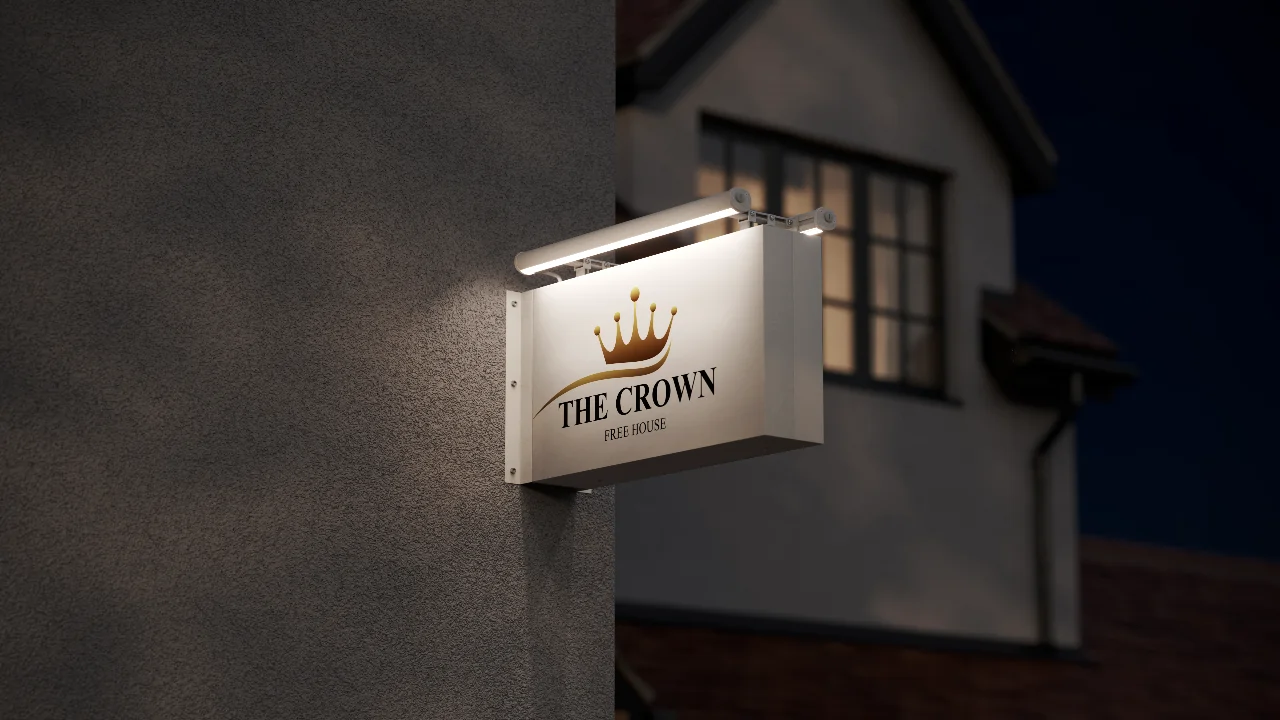

Post-mounted signage, especially commercial signage with no reflective properties, can really benefit from illumination. And while adding a spotlight is a common solution, we prefer the even light provided by our trough light. The most common solution we use is our channel mount bracket - two m8 bolts clamp each bracket to the clip rails on the reverse of the panel, allowing a trough light to be added to a sign after the initial installation (assuming the posts are inset far enough). Single lighting units can have be manufactured with a photocell to improve energy efficiency.
Illumination is provided by IP65 rated LED ribbons, in either cool 6000K or warm 3000K temperature, and output up to 1330 lumens at 9.6 Watts per metre. A low power variant is available, delivering 330 lumens at 4.8 Watts per metre.
For a quote please fill out a quick enquiry form below or contact us directly.
Trough lights are linear lighting systems, commonly employed to illuminate signage on buildings and designed around efficient LED technology for consistent and even lighting.
